型號 | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 | CGF60-60-15 | CGF72-72-18 | CGF80-80-20 |
額定生產能力(500ml瓶/時) | 4000 | 6000 | 10000 | 14000 | 18000 | 24000 | 28000 | 30000 | 36000 |
沖瓶頭數 | 14 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | 80 |

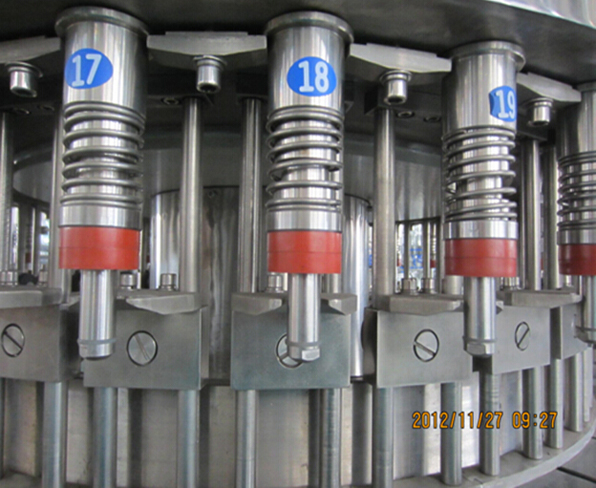

灌裝閥數 | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | 80 |
封蓋頭數 | 4 | 6 | 8 | 10 | 12 | 15 | 15 | 18 | 20 |
適用瓶子直徑 | Ø50-90 | Ø50-105 | Ø50-110 | Ø50-110 | Ø50-110 | Ø50-110 | Ø50-110 | Ø50-110 | Ø50-110 |
適用瓶高 | 150-320 | 150-320 | 150-370 | 150-370 | 150-370 | 150-370 | 150-370 | 150-370 | 150-370 |
額定電壓 | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
外形尺寸 | 2100×1500×2200 | 2300×1700×2400 | 2800×2200×2400 | 2900×2200×2500 | 3600×2700×2850 | 5300×3200×2850 | 5600×4500×2850 | 6000×4800×2850 | 6500×5000×2850 |
設備重量(KG) | 2000 | 2500 | 3500 | 5500 | 7500 | 9000 | 12000 | 15000 | 18000 |
